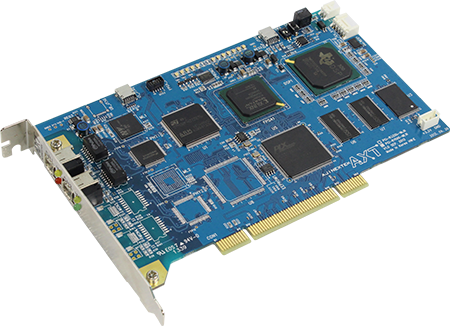

PCI-R1600-MLIII
네트워크 제품

· MECHATROLINK-III 마스터 보드 (YASKAWA 분산 네트워크 규격)
· MECHATROLINK-III Standard Servo Profile, Standard I/O Profile 지원
· 기본 16Axes
· 최대 32노드 제어 지원
· PCI 버스 연결 방식
· Retry 기능, 핫 플래그 기능 등으로 유연한 네트워크 운용 가능
· 100Mbps의 고속 데이터 전송
· EzSoftware UC 소프트웨어 제공

제품사양

항목 사양
Communication type MECHATROLINK-III(YASKAWA distributed network specification)
Communication port 2 port (Up to 16 slaves can be installed)
Physical Layer IEEE 802.3u of the standard Ethernet
Transmission speed 100Mbps
Transmission cycle time 0.125ms, 0.25ms, 05.ms (automatic)
Transmission bytes 64 Bytes
Control Axis Max. 16 Axes
Max. install board of system 8 boards(Max. 128 nods)
LED display NET:LK(Yellow),ER(Red),AT(Green)
Number of configuration nodes Max. 16 nodes
Network connection Ethernet 100base-TX
Industrial mini dedicated STP cable (CAT5e)
Min. 0.2M (between nodes), MAX. 100M (total)"
Bus interface PCI 2.2, 32bit, Universal Type
Connector Industrial mini I/O connector 1.27mm pitch 8p
Power supply / Current consumption DC 3.3V/Max 1.2A
Operating temperature / Humidity Temperature 0 ~ 60°C / Humidity Below 80%
Storage temperature -20 ~ 70°C
Weight 116g
Exterior dimension of product 174.63(W) mm x 106(L) mm
