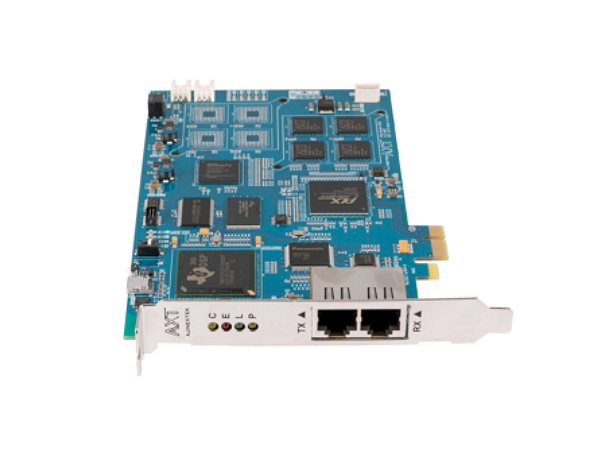

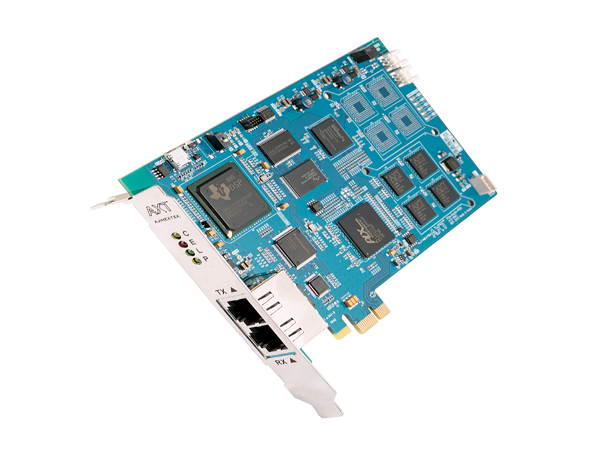

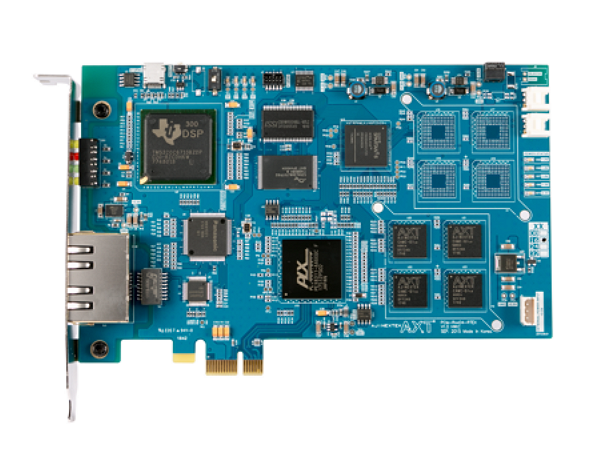

PCIe-Rxx04-RTEX
네트워크 제품

· RTEX (Real time Express) 마스터 보드

· 기본 16 Axes (20, 24, 28, 32 Axes 확장가능)

· RTEX Standard Servo Profile, Standard I/O Profile 지원

· 최대 32 RTEX Slave Module 제어

· 32노드 기준 1.0ms마다 정보 업데이트 가능

· 모션 구동 방식 (지정 거리 구동, 조그 구동, 신호 검출 구동, 보간 구동, 속도/거리 오버라이드)

· 모션 동기 구동 (2~4축 직선 보간, 2축 원호 보간, 3축 헬리컬 보간 등)

· 펌웨어 업그레이드 지원

· EzSoftware UC 소프트웨어 제공

제품사양

항목 사양
Communication type Real - Time Express (Panasonic distributed network specification)
Communication port RJ45
Physical layer 100Base-TX Full Duplex (by IEEE 802.3u)
Transmission speed 100 Mbps
Transmission cycle time 1.0 msec
Transmission bytes 16 byte
Control Axis 16 Axes BASE, Max. 32 Axes (Option contact board)
Max. install board of system 20 boards (Max. 640 nodes)
LED display Power(Yellow), Link(Green), Error(Red), Communication(Yellow)
Number of configuration nodes Max. 32 nodes
Network connection 100BASE-TX, STP cable(above CAT5e)
Bus interface PCIe x1 2.5GB/s, Memory Access
Connector Comm. RJ45 LAN X 2EA
Power supply / Current consumption DC 5V(Allowable Voltage: 4.7V to 5.3V) / 1.5A(Max. Current Consumption: 1.6A)
Operating temperature / Humidity Temperature: 0 ~ 50 °C / Humidity: below 80% (No condensation)
Storage temperature -20 ~ 70°C
Weight 140g
Exterior dimension of product 174.63 (W) mm x 106 (L) mm
